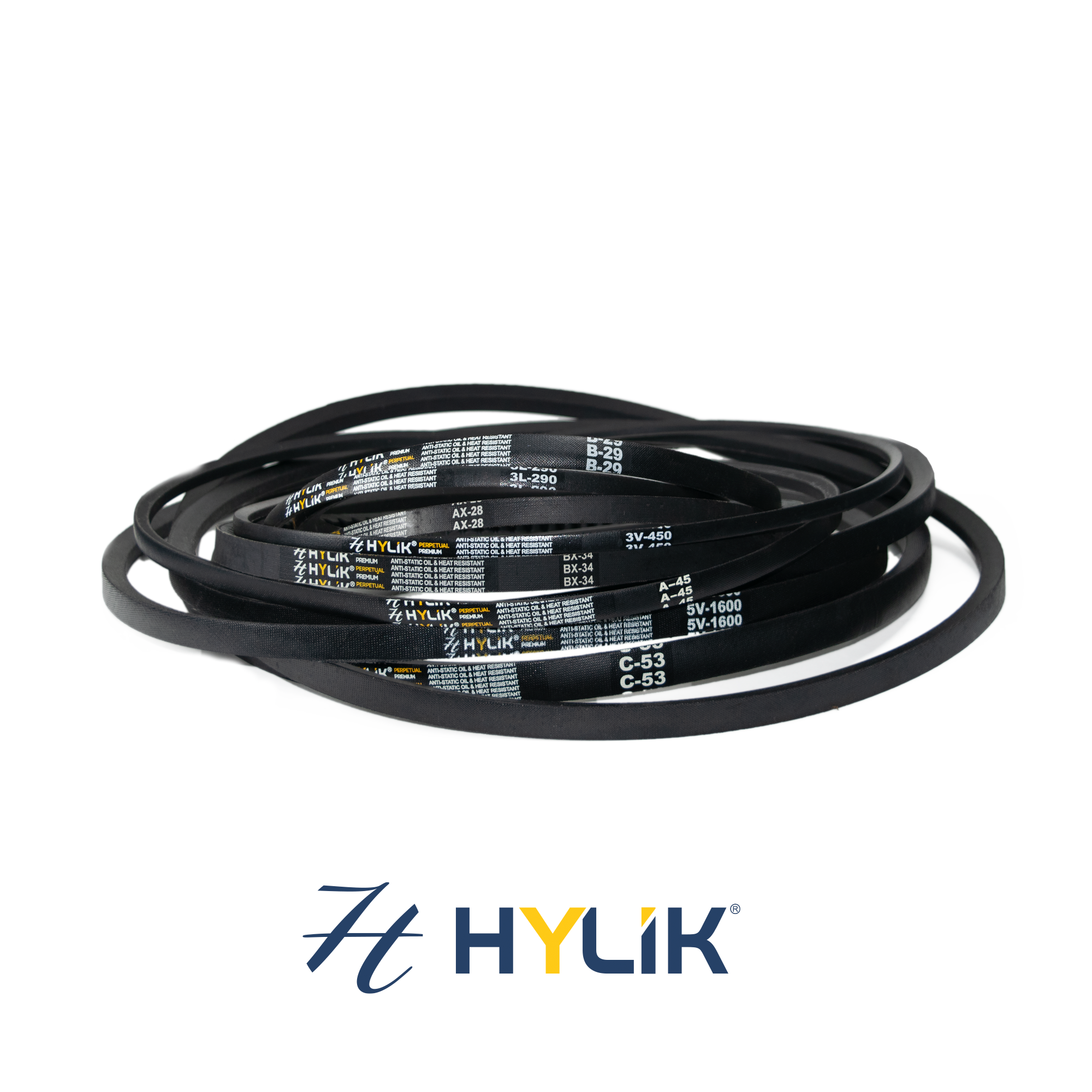

CORREIAS – EM “V” PERFIL B

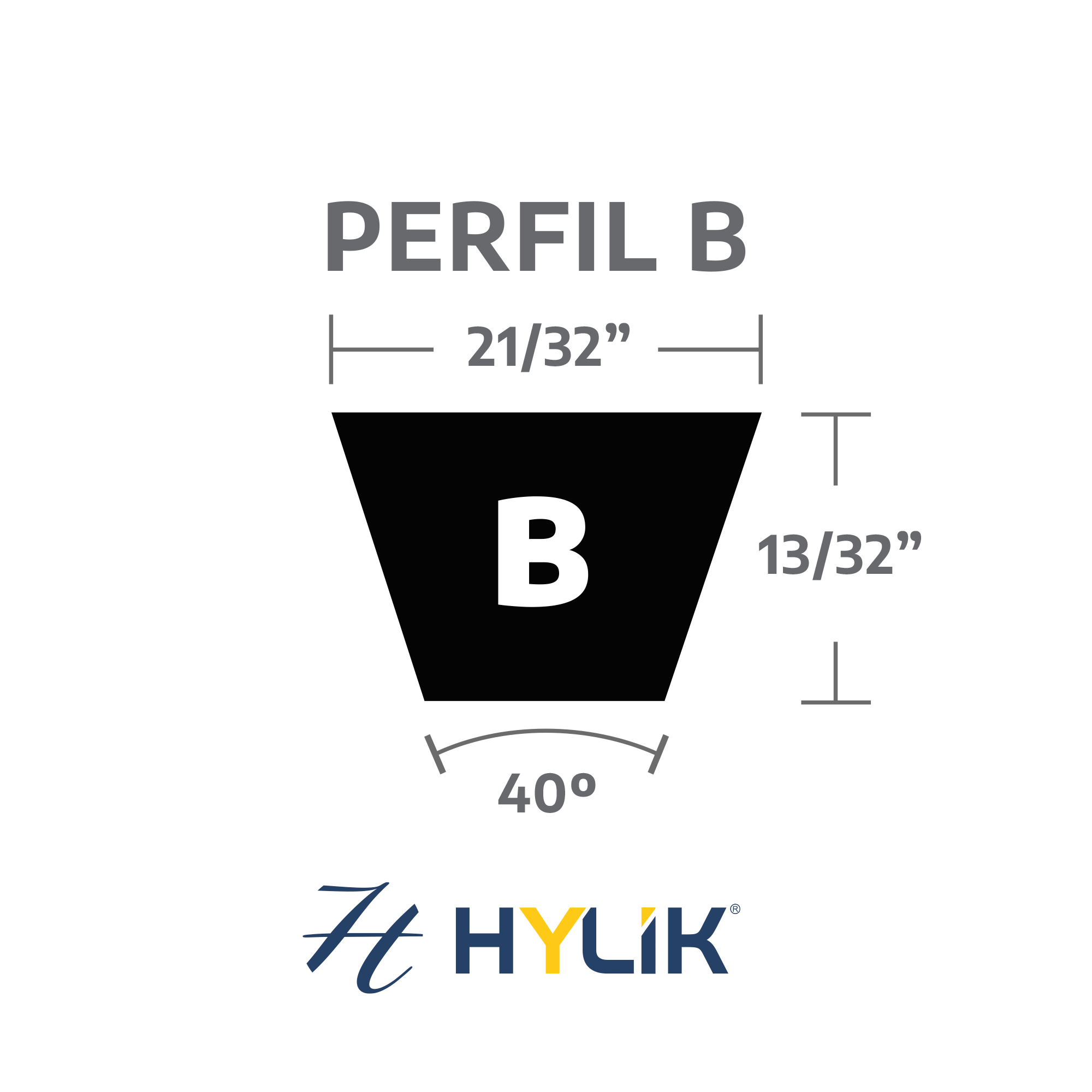

Considerações: C.D. = Comprimento Datum / C.E. = Comprimento Efetivo (Externo)
Largura superior: 17 mm
Altura: 11 mm
Ângulo: 40º +/- 1º
| CÓD. HYLIK | Ref. da Correia | C.D. | C.E. | ||
| REF. | POL. | MM | POL. | MM | |
| HCVB22 | B-22 | 24 | 605 | 25 | 632 |
| HCVB23 | B-23 | 25 | 630 | 26 | 658 |
| HCVB24 | B-24 | 26 | 655 | 27 | 683 |
| HCVB25 | B-25 | 27 | 681 | 28 | 709 |
| HCVB26 | B-26 | 28 | 706 | 29 | 734 |
| HCVB27 | B-27 | 29 | 732 | 30 | 759 |
| HCVB28 | B-28 | 30 | 757 | 31 | 785 |
| HCVB29 | B-29 | 31 | 782 | 32 | 810 |
| HCVB30 | B-30 | 32 | 808 | 33 | 836 |
| HCVB31 | B-31 | 33 | 833 | 34 | 861 |
| HCVB32 | B-32 | 34 | 859 | 35 | 886 |
| HCVB33 | B-33 | 35 | 884 | 36 | 912 |
| HCVB34 | B-34 | 36 | 909 | 37 | 937 |
| HCVB35 | B-35 | 37 | 935 | 38 | 963 |
| HCVB36 | B-36 | 38 | 960 | 39 | 988 |
| HCVB37 | B-37 | 39 | 986 | 40 | 1013 |
| HCVB38 | B-38 | 40 | 1011 | 41 | 1039 |
| HCVB39 | B-39 | 41 | 1036 | 42 | 1064 |
| HCVB40 | B-40 | 42 | 1062 | 43 | 1090 |
| HCVB41 | B-41 | 43 | 1087 | 44 | 1115 |
| HCVB42 | B-42 | 44 | 1113 | 45 | 1140 |
| HCVB43 | B-43 | 45 | 1138 | 46 | 1166 |
| HCVB44 | B-44 | 46 | 1163 | 47 | 1191 |
| HCVB45 | B-45 | 47 | 1189 | 48 | 1217 |
| HCVB46 | B-46 | 48 | 1214 | 49 | 1242 |
| HCVB47 | B-47 | 49 | 1240 | 50 | 1267 |
| HCVB48 | B-48 | 50 | 1265 | 51 | 1293 |
| HCVB49 | B-49 | 51 | 1290 | 52 | 1318 |
| HCVB50 | B-50 | 52 | 1316 | 53 | 1344 |
| HCVB51 | B-51 | 53 | 1341 | 54 | 1369 |
| HCVB52 | B-52 | 54 | 1367 | 55 | 1394 |
| HCVB53 | B-53 | 55 | 1392 | 56 | 1420 |
| HCVB54 | B-54 | 56 | 1417 | 57 | 1445 |
| HCVB55 | B-55 | 57 | 1443 | 58 | 1471 |
| HCVB56 | B-56 | 58 | 1468 | 59 | 1496 |
| HCVB57 | B-57 | 59 | 1494 | 60 | 1521 |
| HCVB58 | B-58 | 60 | 1519 | 61 | 1547 |
| HCVB59 | B-59 | 61 | 1544 | 62 | 1572 |
| HCVB60 | B-60 | 62 | 1570 | 63 | 1598 |
| HCVB61 | B-61 | 63 | 1595 | 64 | 1623 |
| HCVB62 | B-62 | 64 | 1621 | 65 | 1648 |
| HCVB63 | B-63 | 65 | 1646 | 66 | 1674 |
| HCVB64 | B-64 | 66 | 1671 | 67 | 1699 |
| HCVB65 | B-65 | 67 | 1697 | 68 | 1725 |
| HCVB66 | B-66 | 68 | 1722 | 69 | 1750 |
| HCVB67 | B-67 | 69 | 1748 | 70 | 1775 |
| HCVB68 | B-68 | 70 | 1773 | 71 | 1801 |
| HCVB69 | B-69 | 71 | 1798 | 72 | 1826 |
| HCVB70 | B-70 | 72 | 1824 | 73 | 1852 |
| HCVB71 | B-71 | 73 | 1849 | 74 | 1877 |
| HCVB72 | B-72 | 74 | 1875 | 75 | 1902 |
| HCVB73 | B-73 | 75 | 1900 | 76 | 1928 |
| HCVB74 | B-74 | 76 | 1925 | 77 | 1953 |
| HCVB75 | B-75 | 77 | 1951 | 78 | 1979 |
| HCVB76 | B-76 | 78 | 1976 | 79 | 2004 |
| HCVB77 | B-77 | 79 | 2002 | 80 | 2029 |
| HCVB78 | B-78 | 80 | 2027 | 81 | 2055 |
| HCVB79 | B-79 | 81 | 2052 | 82 | 2080 |
| HCVB80 | B-80 | 82 | 2078 | 83 | 2106 |
| HCVB81 | B-81 | 83 | 2103 | 84 | 2131 |
| HCVB82 | B-82 | 84 | 2129 | 85 | 2156 |
| HCVB83 | B-83 | 85 | 2154 | 86 | 2182 |
| HCVB84 | B-84 | 86 | 2179 | 87 | 2207 |
| HCVB85 | B-85 | 87 | 2205 | 88 | 2233 |
| HCVB86 | B-86 | 88 | 2230 | 89 | 2258 |
| HCVB87 | B-87 | 89 | 2256 | 90 | 2283 |
| HCVB88 | B-88 | 90 | 2281 | 91 | 2309 |
| HCVB89 | B-89 | 91 | 2306 | 92 | 2334 |
| HCVB90 | B-90 | 92 | 2332 | 93 | 2360 |
| HCVB91 | B-91 | 93 | 2357 | 94 | 2385 |
| HCVB92 | B-92 | 94 | 2383 | 95 | 2410 |
| HCVB93 | B-93 | 95 | 2408 | 96 | 2436 |
| HCVB94 | B-94 | 96 | 2433 | 97 | 2461 |
| HCVB95 | B-95 | 97 | 2459 | 98 | 2487 |
| HCVB96 | B-96 | 98 | 2484 | 99 | 2512 |
| HCVB97 | B-97 | 99 | 2510 | 100 | 2537 |
| HCVB98 | B-98 | 100 | 2535 | 101 | 2563 |
| HCVB99 | B-99 | 101 | 2560 | 102 | 2588 |
| HCVB100 | B-100 | 102 | 2586 | 103 | 2614 |
| HCVB103 | B-103 | 105 | 2662 | 106 | 2690 |
| HCVB105 | B-105 | 107 | 2713 | 108 | 2741 |
| HCVB107 | B-107 | 109 | 2764 | 110 | 2791 |
| HCVB108 | B-108 | 110 | 2789 | 111 | 2817 |
| HCVB109 | B-109 | 111 | 2814 | 112 | 2842 |
| HCVB110 | B-110 | 112 | 2840 | 113 | 2868 |
| HCVB111 | B-111 | 113 | 2865 | 114 | 2893 |
| HCVB112 | B-112 | 114 | 2891 | 115 | 2918 |
| HCVB114 | B-114 | 116 | 2941 | 117 | 2969 |
| HCVB115 | B-115 | 117 | 2967 | 118 | 2995 |
| HCVB116 | B-116 | 118 | 2992 | 119 | 3020 |
| HCVB117 | B-117 | 119 | 3018 | 120 | 3045 |
| HCVB118 | B-118 | 120 | 3043 | 121 | 3071 |
| HCVB119 | B-119 | 121 | 3068 | 122 | 3096 |
| HCVB120 | B-120 | 122 | 3094 | 123 | 3122 |
| HCVB123 | B-123 | 125 | 3170 | 126 | 3198 |
| HCVB124 | B-124 | 126 | 3195 | 127 | 3223 |
| HCVB126 | B-126 | 128 | 3246 | 129 | 3274 |
| HCVB128 | B-128 | 130 | 3297 | 131 | 3325 |
| HCVB130 | B-130 | 132 | 3348 | 133 | 3376 |
| HCVB131 | B-131 | 133 | 3373 | 134 | 3401 |
| HCVB136 | B-136 | 138 | 3500 | 139 | 3528 |
| HCVB138 | B-138 | 140 | 3551 | 141 | 3579 |
| HCVB144 | B-144 | 146 | 3703 | 147 | 3731 |
| HCVB150 | B-150 | 152 | 3856 | 153 | 3884 |
| HCVB152 | B-152 | 154 | 3907 | 155 | 3934 |
| HCVB158 | B-158 | 160 | 4059 | 161 | 4087 |
| HCVB162 | B-162 | 164 | 4161 | 165 | 4188 |
| HCVB165 | B-165 | 167 | 4237 | 168 | 4265 |
| HCVB173 | B-173 | 175 | 4440 | 176 | 4468 |
| HCVB174 | B-174 | 176 | 4465 | 177 | 4493 |
| HCVB178 | B-178 | 180 | 4567 | 181 | 4595 |
| HCVB180 | B-180 | 182 | 4618 | 183 | 4646 |
| HCVB185 | B-185 | 187 | 4745 | 188 | 4773 |
| HCVB190 | B-190 | 192 | 4872 | 193 | 4900 |
| HCVB195 | B-195 | 197 | 4999 | 198 | 5027 |
| HCVB210 | B-210 | 212 | 5380 | 212 | 5385 |
| HCVB225 | B-225 | 226 | 5738 | 227 | 5766 |
| HCVB240 | B-240 | 241 | 6119 | 242 | 6147 |
| HCVB249 | B-249 | 250 | 6347 | 242 | 6147 |
| HCVB270 | B-270 | 271 | 6881 | 272 | 6909 |
| HCVB300 | B-300 | 301 | 7643 | 302 | 7671 |
| HCVB330 | B-330 | 331 | 8405 | 332 | 8433 |
