Description

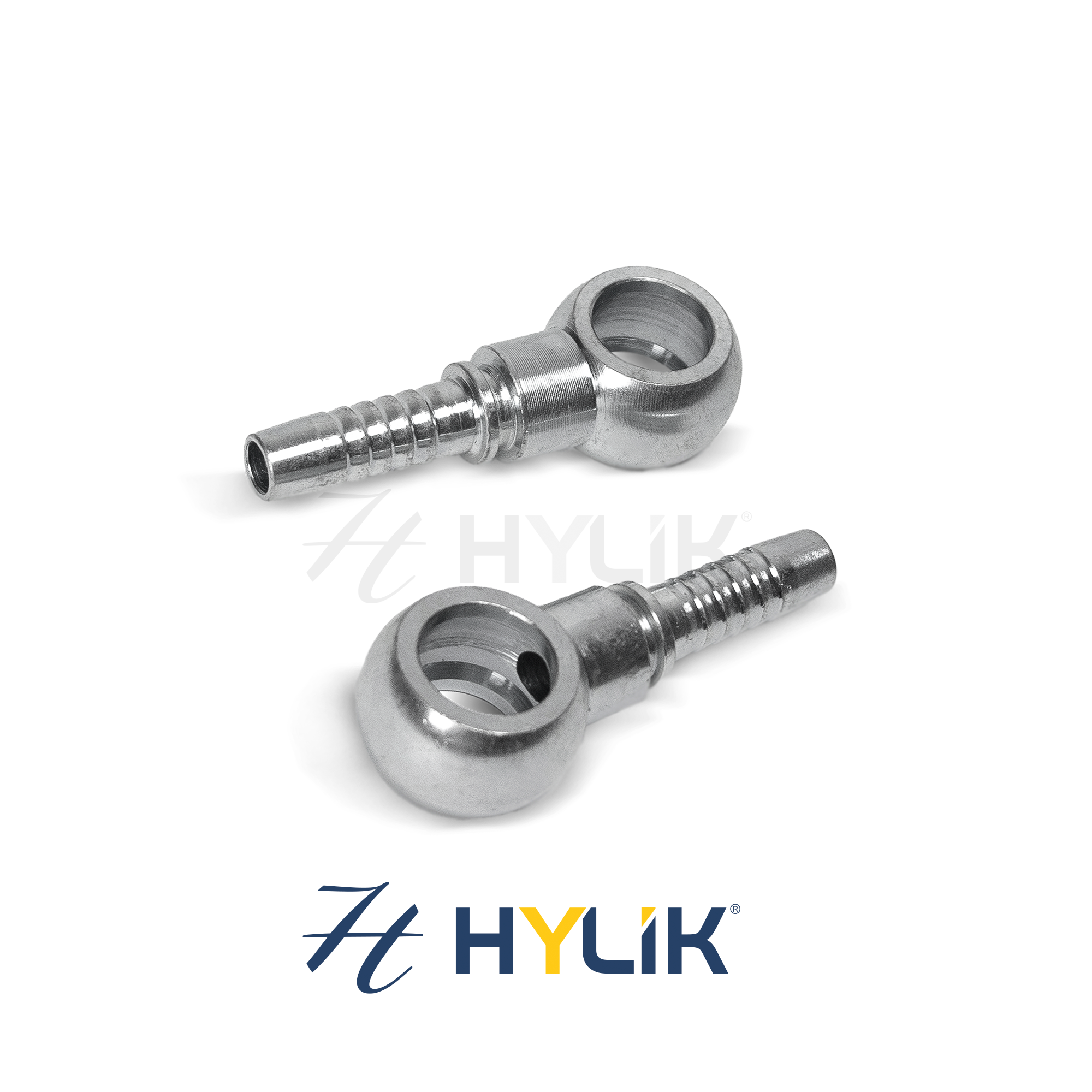

TERMINAL – FURO PARA ROSCA BSPP (BRITISH STANDAD PIPE PARALLEL)
ENCAIXE PARA PARAFUSO OCO ROSCA EM POLEGADA
| CÓD. HYLIK | ROSCA | MANGUEIRA | ||||
| FURO | MM | TRAÇO | DN | TRAÇO | POL | |
| HOB23 | 1/8 | 8,73 | -02 | 6 | -04 | 1/4 |
| HOB24 | 1/8 | 8,73 | -02 | 6 | -04 | 1/4 |
| HOB43 | 1/4 | 11,90 | -04 | 5 | -03 | 3/16 |
| HOB44 | 1/4 | 11,90 | -04 | 6 | -04 | 1/4 |
| HOB45 | 1/4 | 11,90 | -04 | 8 | -05 | 5/16 |
| HOB46 | 1/4 | 11,90 | -04 | 10 | -06 | 3/8 |
| HOB64 | 3/8 | 15,08 | -06 | 6 | -04 | 1/4 |
| HOB65 | 3/8 | 15,08 | -06 | 8 | -05 | 5/16 |
| HOB66 | 3/8 | 15,08 | -06 | 10 | -06 | 3/8 |
| HOB68 | 3/8 | 15,08 | -06 | 12 | -08 | 1/2 |
| HOB85 | 1/2 | 19,05 | -08 | 8 | -05 | 5/16 |
| HOB86 | 1/2 | 19,05 | -08 | 10 | -06 | 3/8 |
| HOB88 | 1/2 | 19,05 | -08 | 12 | -08 | 1/2 |
| HOB810 | 1/2 | 19,05 | -08 | 16 | -10 | 5/8 |
| HOB1010 | 5/8 | 20,63 | -10 | 16 | -10 | 5/8 |
| HOB1210 | 3/4 | 24,60 | -12 | 16 | -10 | 5/8 |
| HOB1212 | 3/4 | 24,60 | -12 | 19 | -12 | 3/4 |
| HOB168 | 1 | 30,95 | -16 | 12 | -08 | 1/2 |
| HOB1612 | 1 | 30,95 | -16 | 19 | -12 | 3/4 |
| HOB1616 | 1 | 30,95 | -16 | 25 | -16 | 1 |
