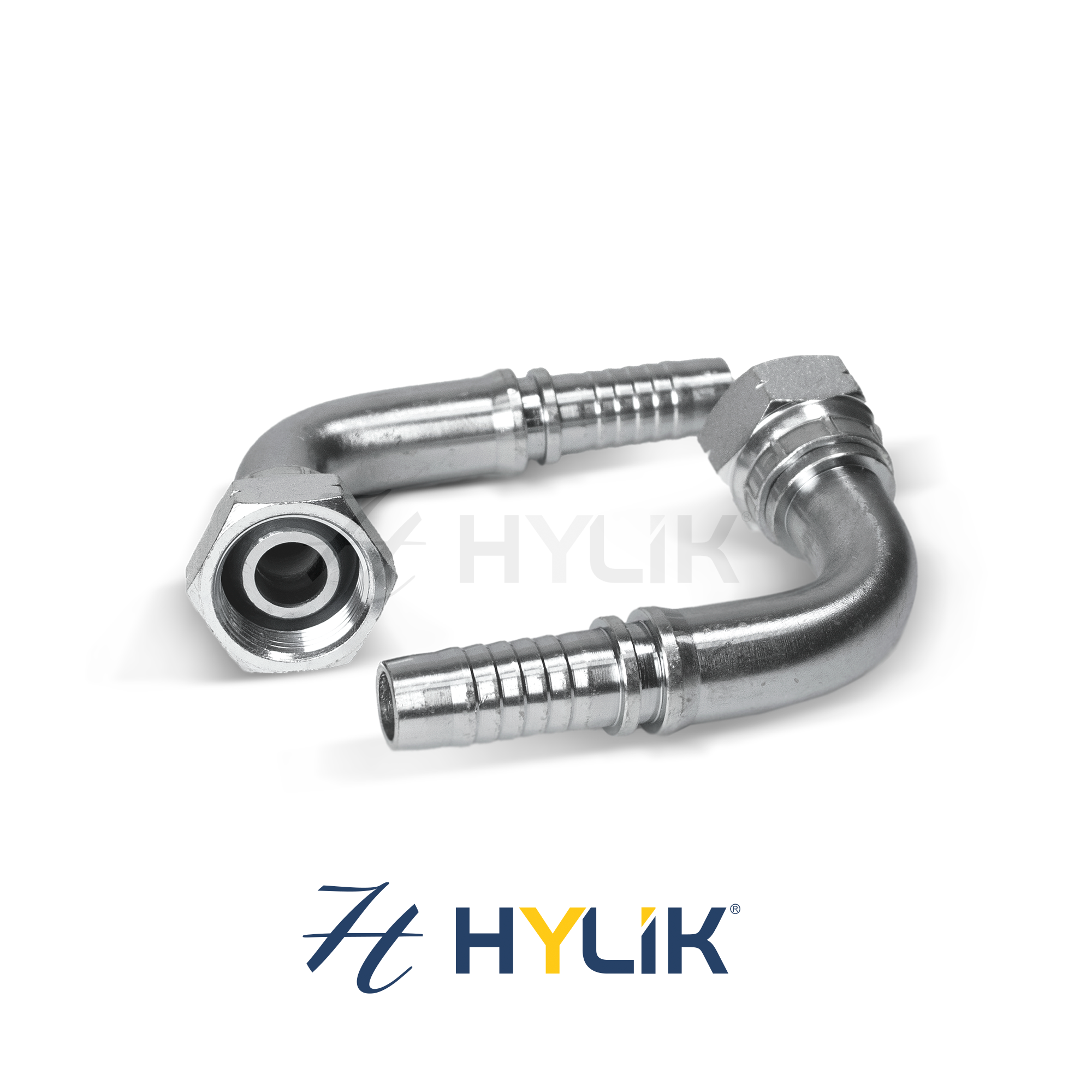

TERMINAL – FÊMEA GIRATÓRIA 90º BSP 60º
Rosca BSP (Britsh Standard Pipe).
Vedação Boleada 60º.
| CÓD. HYLIK | ROSCA | MANGUEIRA | ||||
| POL | MM | TRAÇO | DN | TRAÇO | POL | |
| HFB900203 | 1/8 | 8,73 | -02 | 5 | -03 | 3/16 |
| HFB900204 | 1/8 | 8,73 | -02 | 6 | -04 | 1/4 |
| HFB900403 | 1/4 | 11,9 | -04 | 5 | -03 | 3/16 |
| HFB900404 | 1/4 | 11,9 | -04 | 6 | -04 | 1/4 |
| HFB900405 | 1/4 | 11,9 | -04 | 8 | -05 | 5/16 |
| HFB900406 | 1/4 | 11,9 | -04 | 10 | -06 | 3/8 |
| HFB900604 | 3/8 | 15,08 | -06 | 6 | -04 | 1/4 |
| HFB900605 | 3/8 | 15,08 | -06 | 8 | -05 | 5/16 |
| HFB900606 | 3/8 | 15,08 | -06 | 10 | -06 | 3/8 |
| HFB900806 | 1/2 | 19,05 | -08 | 10 | -06 | 3/8 |
| HFB900808 | 1/2 | 19,05 | -08 | 12 | -08 | 1/2 |
| HFB900810 | 1/2 | 19,05 | -08 | 16 | -10 | 5/8 |
| HFB901008 | 5/8 | 20,63 | -10 | 12 | -08 | 1/2 |
| HFB901010 | 5/8 | 20,63 | -10 | 16 | -10 | 5/8 |
| HFB901208 | 3/4 | 24,6 | -12 | 12 | -08 | 1/2 |
| HFB901210 | 3/4 | 24,6 | -12 | 16 | -10 | 5/8 |
| HFB901212 | 3/4 | 24,6 | -12 | 20 | -12 | 3/4 |
| HFB901612 | 1 | 30,95 | -16 | 20 | -12 | 3/4 |
| HFB901616 | 1 | 30,95 | -16 | 25 | -16 | 1 |
| HFB902016 | 1.1/4 | 38,89 | -20 | 25 | -16 | 1 |
| HFB902020 | 1.1/4 | 38,89 | -20 | 32 | -20 | 1.1/4 |
| HFB902424 | 1.1/2 | 45,24 | -24 | 40 | -24 | 1.1/2 |
| HFB903232 | 2 | 56,35 | -32 | 50 | -32 | 2 |
