Description

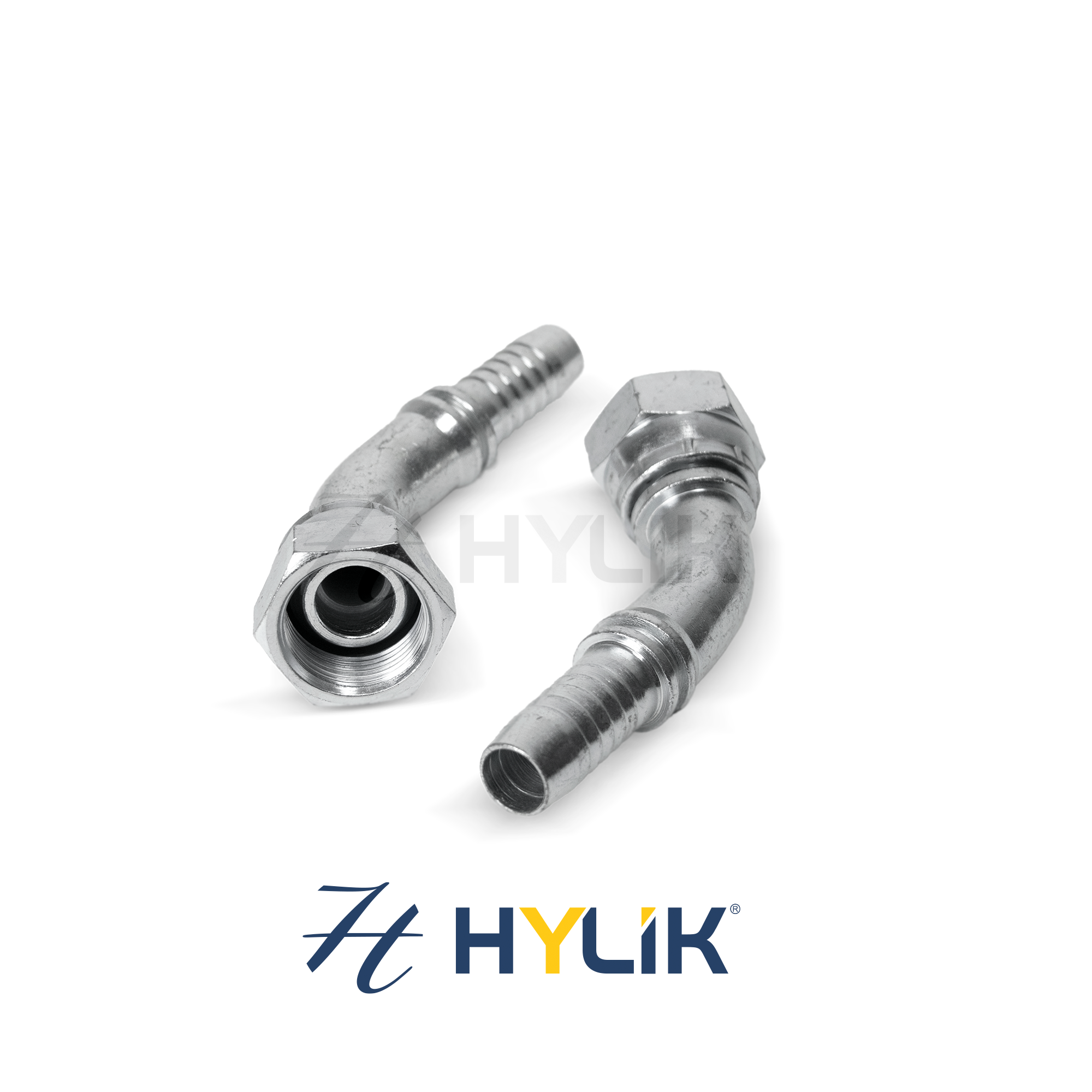

TERMINAL – FÊMEA GIRATÓRIA 45º BSP 60º
Rosca BSP (Britsh Standard Pipe).
Vedação Boleada 60º.
| CÓD. HYLIK | ROSCA | MANGUEIRA | ||||
| POL | MM | TRAÇO | DN | TRAÇO | POL | |
| HFB450404 | 1/4 | 11,9 | -04 | 6 | -04 | 1/4 |
| HFB450604 | 3/8 | 15,08 | -06 | 6 | -04 | 1/4 |
| HFB450605 | 3/8 | 15,08 | -06 | 8 | -05 | 5/16 |
| HFB450606 | 3/8 | 15,08 | -06 | 10 | -06 | 3/8 |
| HFB450806 | 1/2 | 19,05 | -08 | 10 | -06 | 3/8 |
| HFB450808 | 1/2 | 19,05 | -08 | 12 | -08 | 1/2 |
| HFB451008 | 5/8 | 20,63 | -10 | 12 | -08 | 1/2 |
| HFB451010 | 5/8 | 20,63 | -10 | 16 | -10 | 5/8 |
| HFB451208 | 3/4 | 24,6 | -12 | 12 | -08 | 1/2 |
| HFB451210 | 3/4 | 24,6 | -12 | 16 | -10 | 5/8 |
| HFB451212 | 3/4 | 24,6 | -12 | 19 | -12 | 3/4 |
| HFB451612 | 1 | 30,95 | -16 | 19 | -12 | 3/4 |
| HFB451616 | 1 | 30,95 | -16 | 25 | -16 | 1 |
| HFB452016 | 1.1/4 | 38,89 | -20 | 25 | -16 | 1 |
| HFB452020 | 1.1/4 | 38,89 | -20 | 31 | -20 | 1.1/4 |
| HFB452424 | 1.1/2 | 45,24 | -24 | 38 | -24 | 1.1/2 |
| HFB453232 | 2 | 56,35 | -32 | 51 | -32 | 2 |
